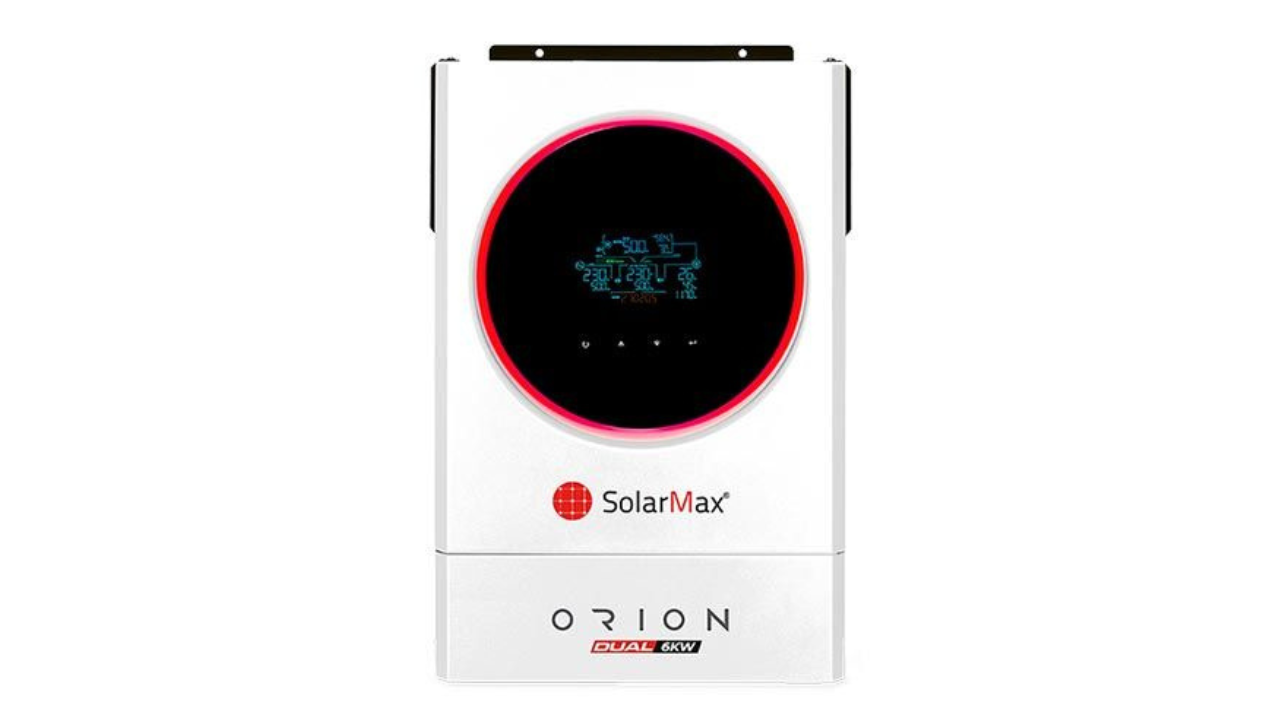

The SolarMax Orion 6KW Solar MPPT Off-Grid Inverter is designed to help those people who want to improve the efficiency of their solar system. Priced at Rs. 220,000 It provides you the advanced MPPT technology so that your solar can perform very well. With MPPT technology your solar can work perfectly for an off-grid system.
It provides you with a 2-year guarantee of unlimited parts of solar with free lifetime service. This Solar is designed for peace of mind and long-term reliability so that everyone can enjoy the Solar efficiency
Table Of Content
Inverter Specifications
| Specification | Details |
|---|---|
| Price (PKR) | 220,000 |
| Model | SM-ORION-DUAL-6KW |
| Rated Power | 6000VA / 6000W |
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 10% |
| Surge Power | 12000 VA |
| Efficiency (Peak) | 90% – 93% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger Type | MPPT |
| Max PV Array Power | 6000W |
| MPP Range Operating Voltage | 60 – 450 VDC |
| Max PV Array Open Circuit Voltage | 500 VDC |
| Max PV Input Current | 27A |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 100A |
| Max Charge Current | 120A |
| Dimensions (D x W x H) | 119 x 313.6 x 457.5 mm |
| Net Weight | 12 kg |
| Communication Interface | USB / RS232 / RS485 / WIFI / Dry-contact |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
Disclaimer
The price of the Solar Max 6kW Inverter Price above is an estimate and may vary depending on factors such as the seller, location, and current market conditions. It is recommended to contact a local solar installer or supplier for the most accurate and up-to-date pricing information.
